Technical Features

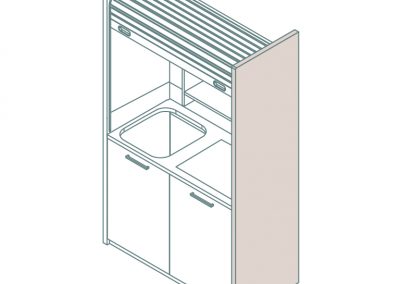

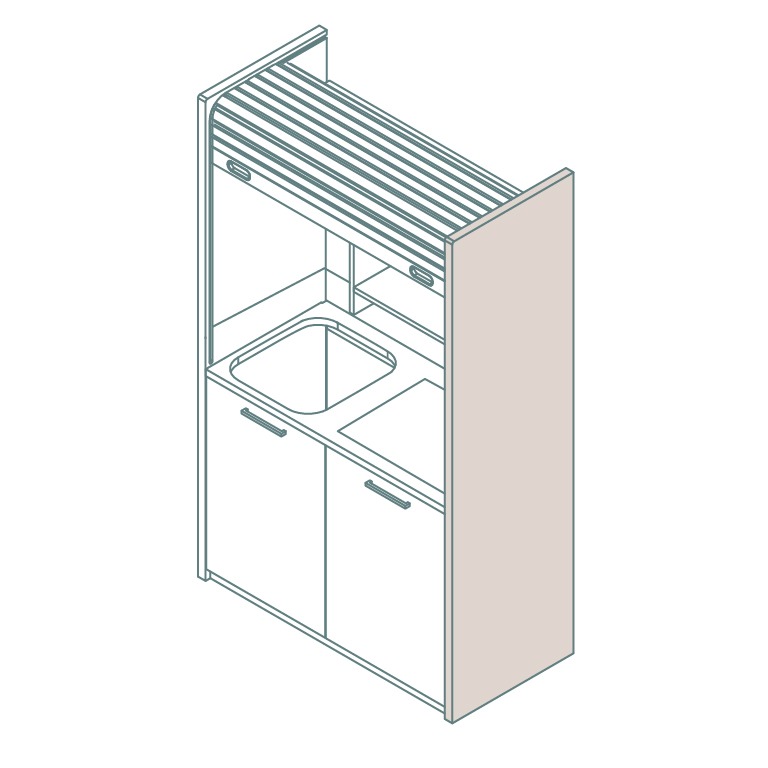

Frame

The frame is made of particleboard panels, coated in melamine in class E1 with edges in ABS (low formaldehyde emissions according to European regulations).

Thickness: 38 mm

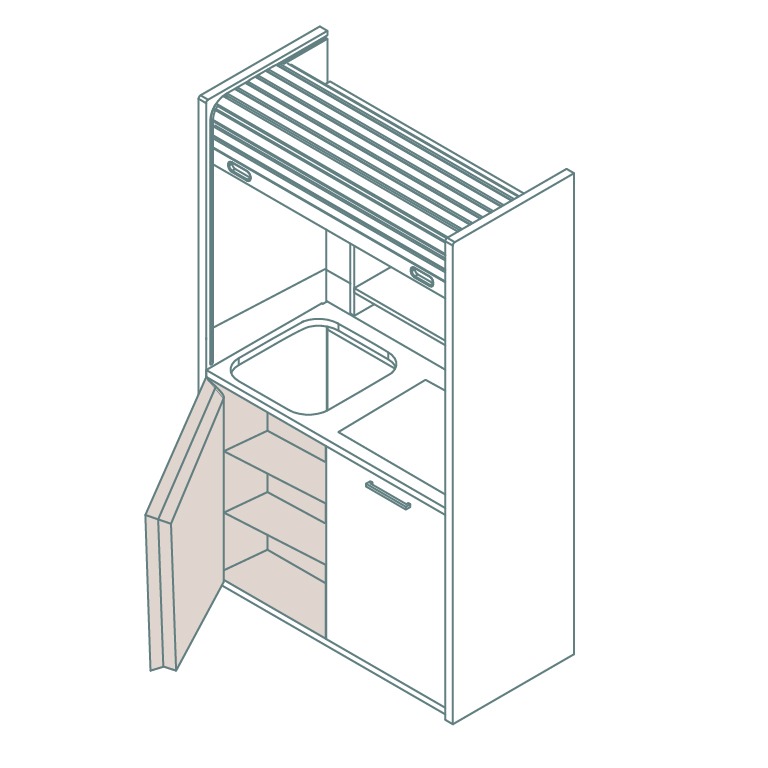

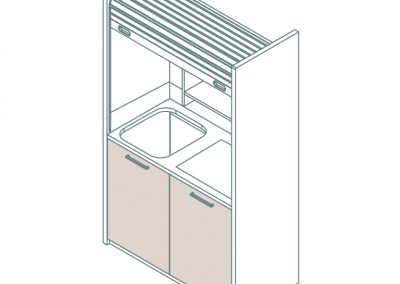

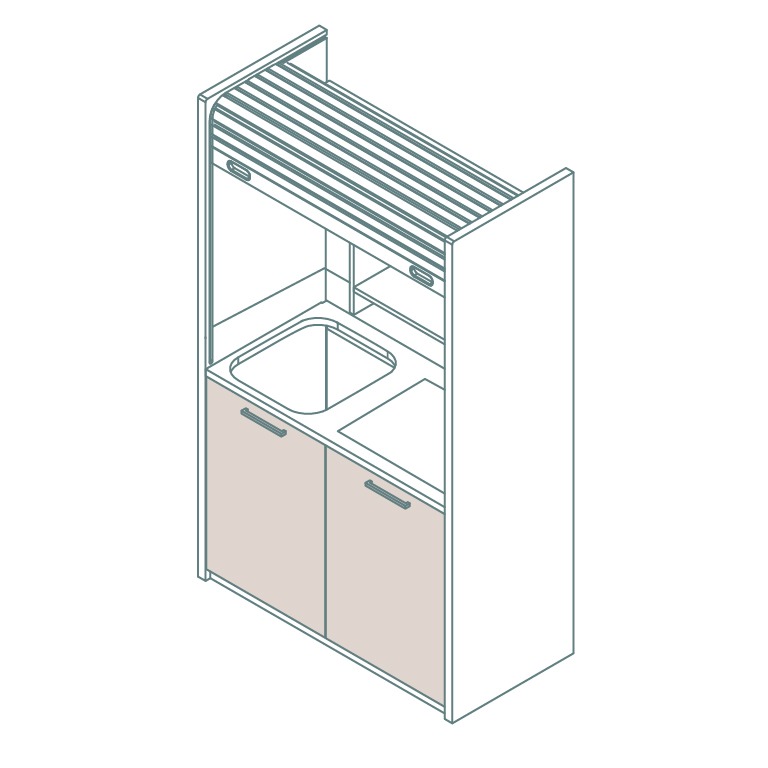

Doors

The doors are made of particleboard panels coated in melamine in class E1 with four edges in ABS (low formaldehyde emissions according to European regulations).

Thickness: 18 mm

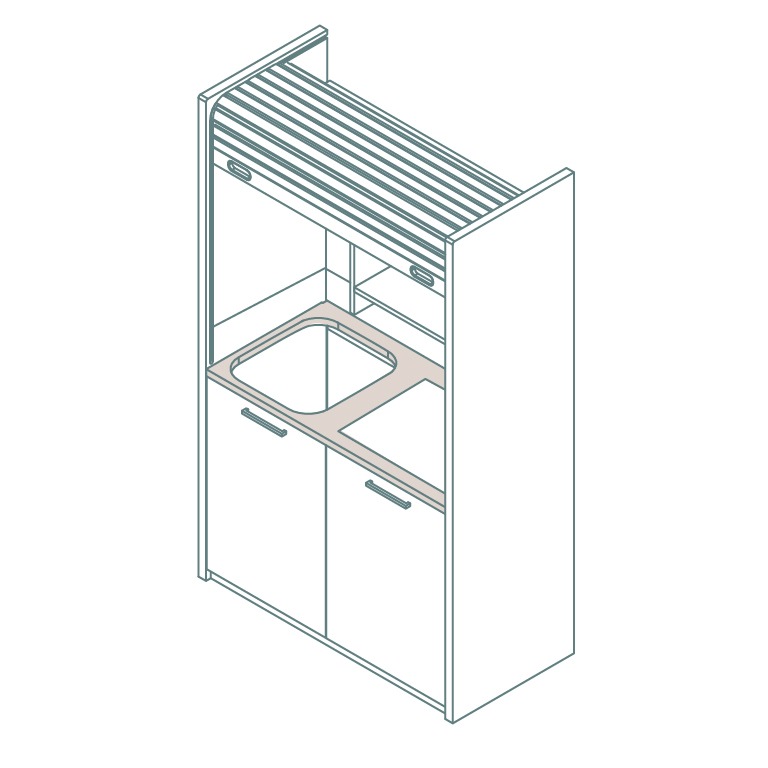

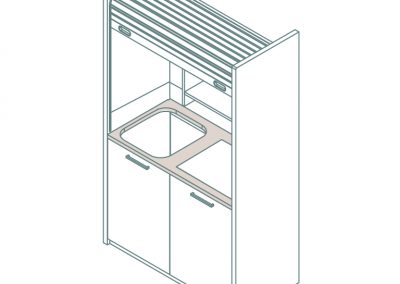

Working Top

The working top is a particleboard panel, coated in melamine in class E1 with edges in ABS (low formaldehyde emissions according to European rules) and water resistant.

Thickness: 38 mm.

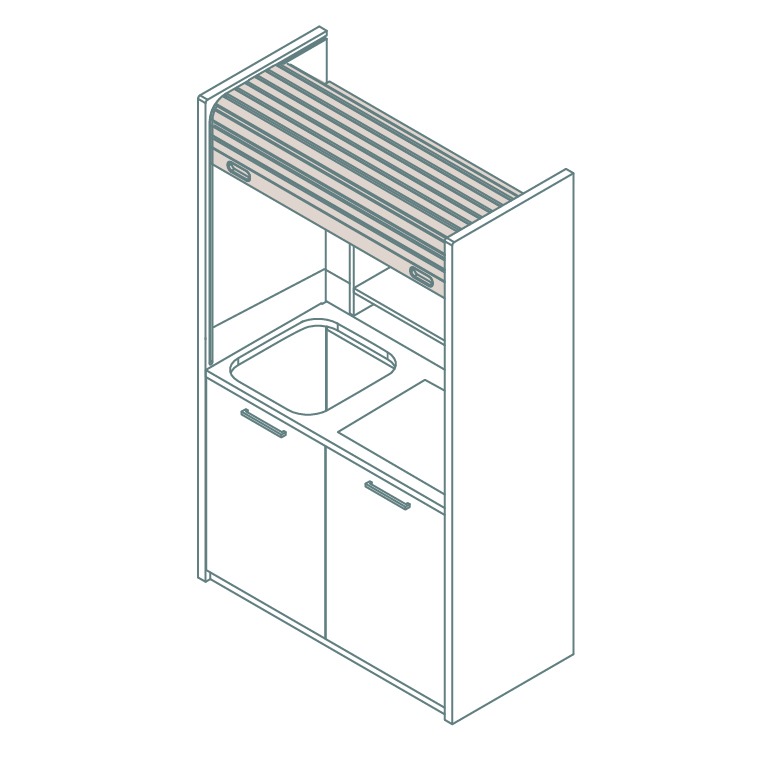

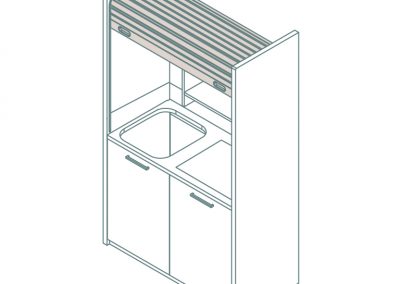

Rolling Shutter

The rolling shutter is made of colored PVC. It runs through rails on the frames and has a limit switching mechanisim to control the position of the shutter when open/closed  .

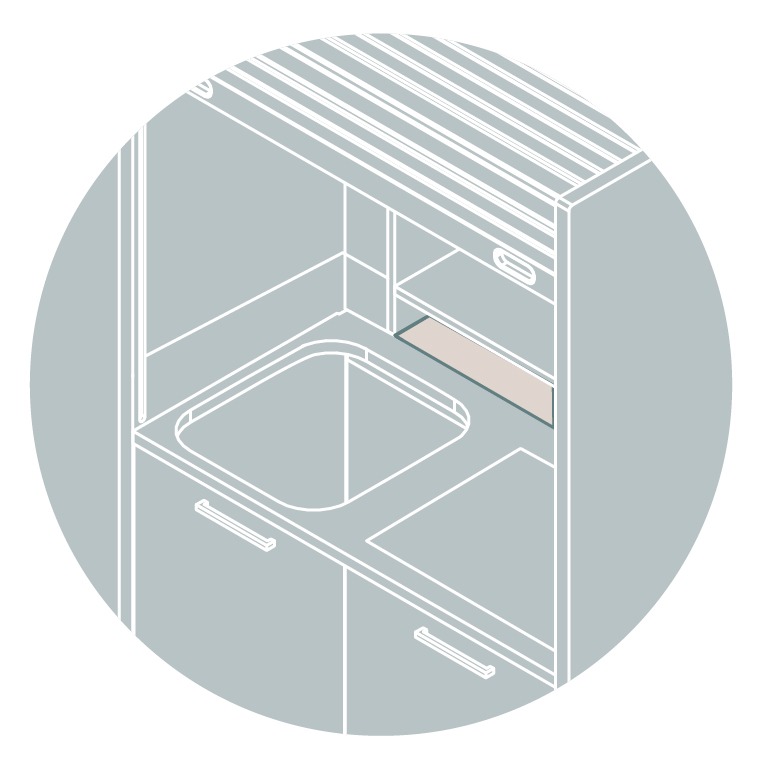

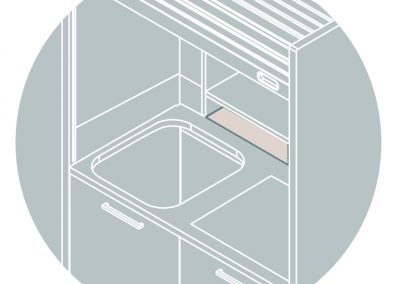

Cooker Hood





Alson known as an extraction hood. It removes airborne grease, combustion products, fumes, smoke, heat, and steam from the air by evacuation of the air and filtration.

  • Stainless steel with extractable glass front
  • 210 watt engine with 3 speeds
  • 2x 40 watt lamps
  • acrylic grease filter
  • possibility of connection to an external exhaust.

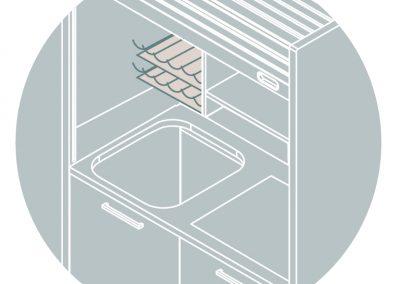

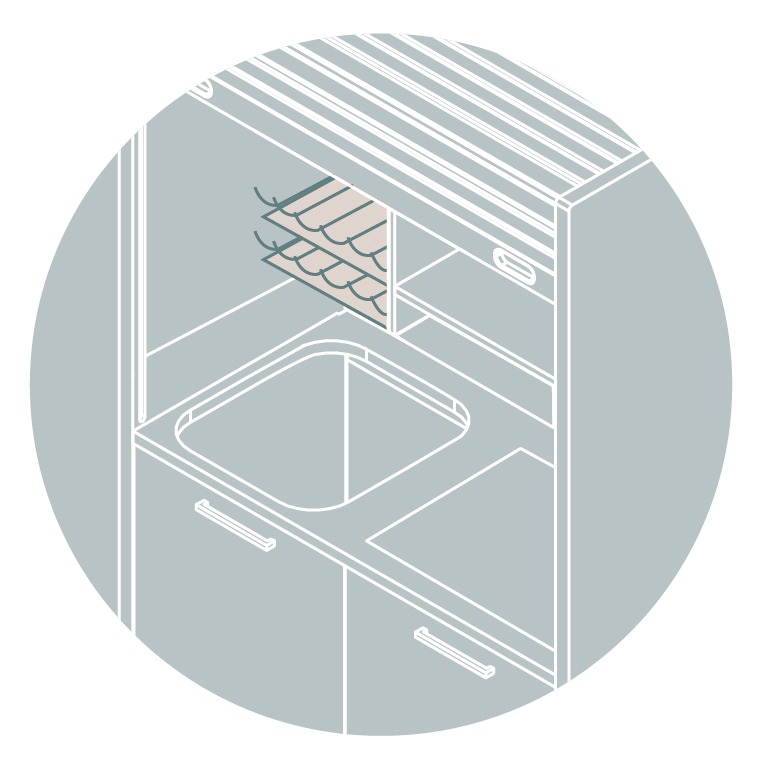

Dish Drainner

The dish rack consists of an aluminium frame, a PVC tray to catch driping water and a stainless steel rack for glasses and dishes.

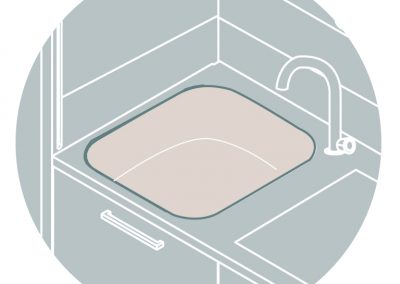

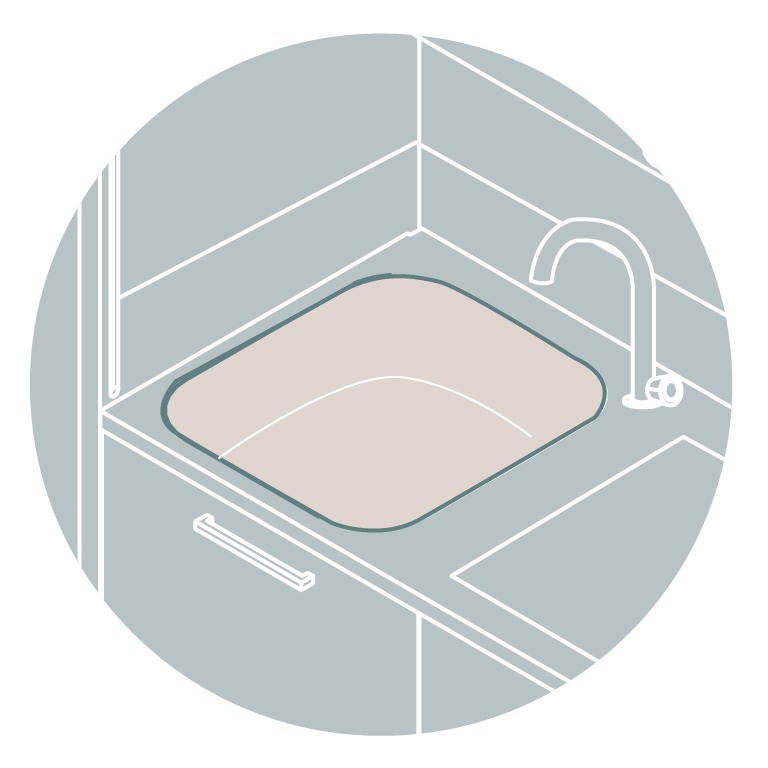

Sink

A stainless steel sink (18/10 Alloy composition) with a PVC siphon.

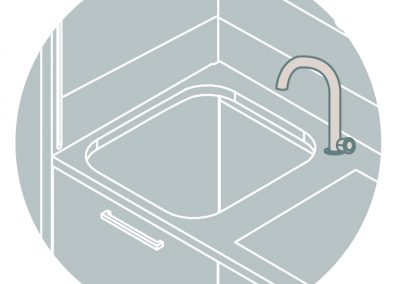

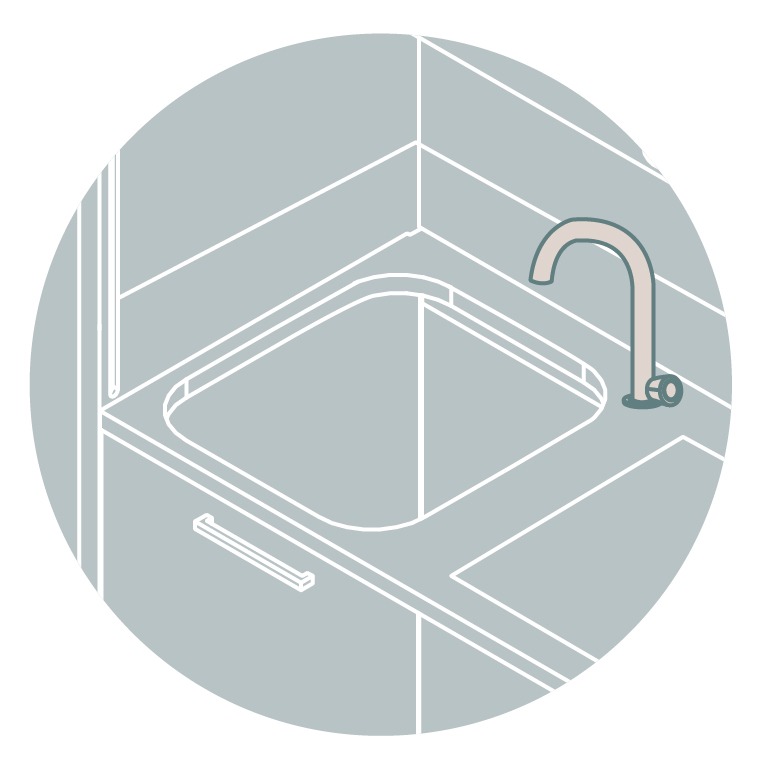

Faucet

A mixer tap for hot and cold water.

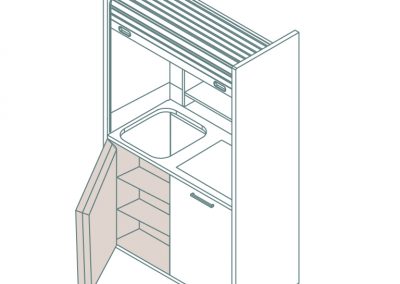

Refrigerator

Built-in base under the working top : K140, K102, K108Built-in fridge in the lateral column : K109, K120
total capacity : 119 litrestotal capacity : 220 litres
fridge compartment : 95 litresfridge compartment : 183 litres
freezer compartment : 16 litresfreezer compartment : 37 litres

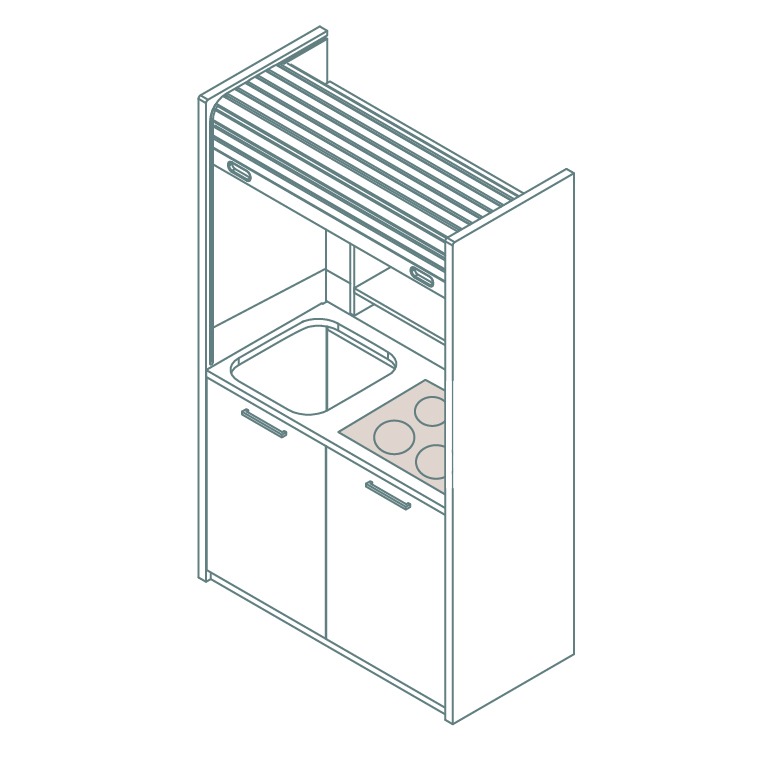

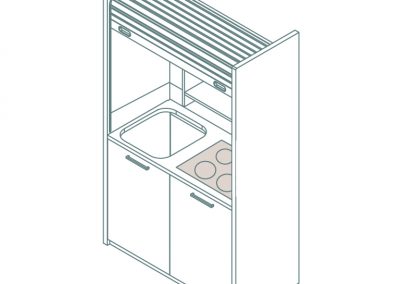

Cooker Hob

Electric with 2 rings : K140, K102, K109 or 4 rings : K108,K120

Gas with with 2 burners : K140, K102, K109 or 4 burners : K108,K120

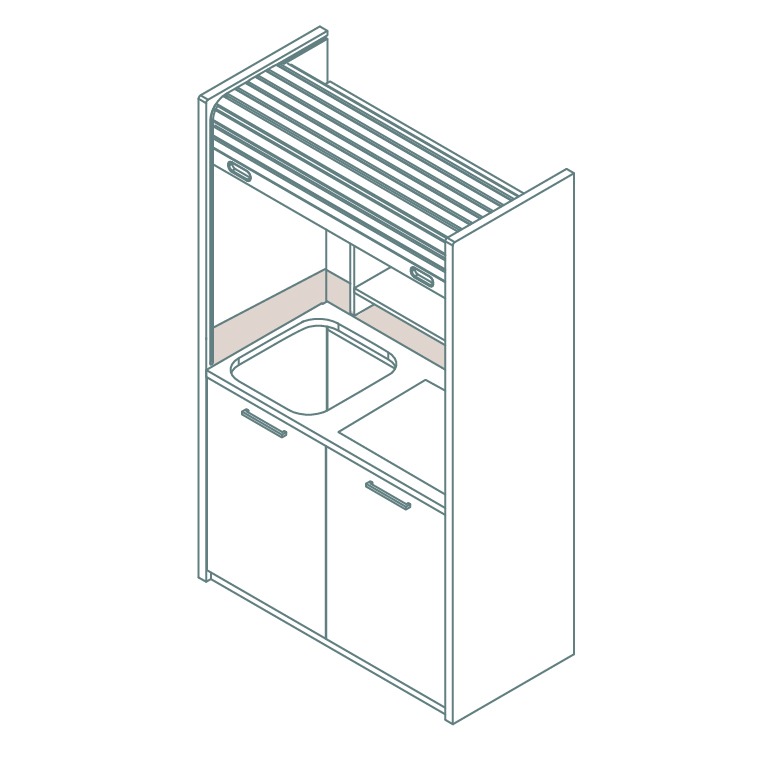

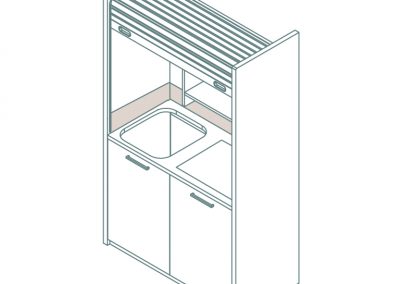

Protection

A stainless steel sheet(18/10 Alloy) that works as protection on 3 sides around the working top.

Height 150 mm.

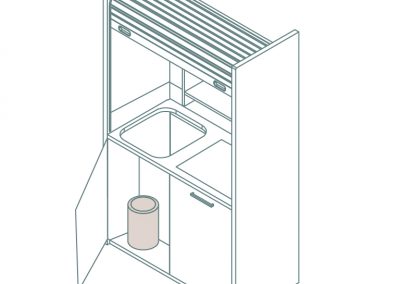

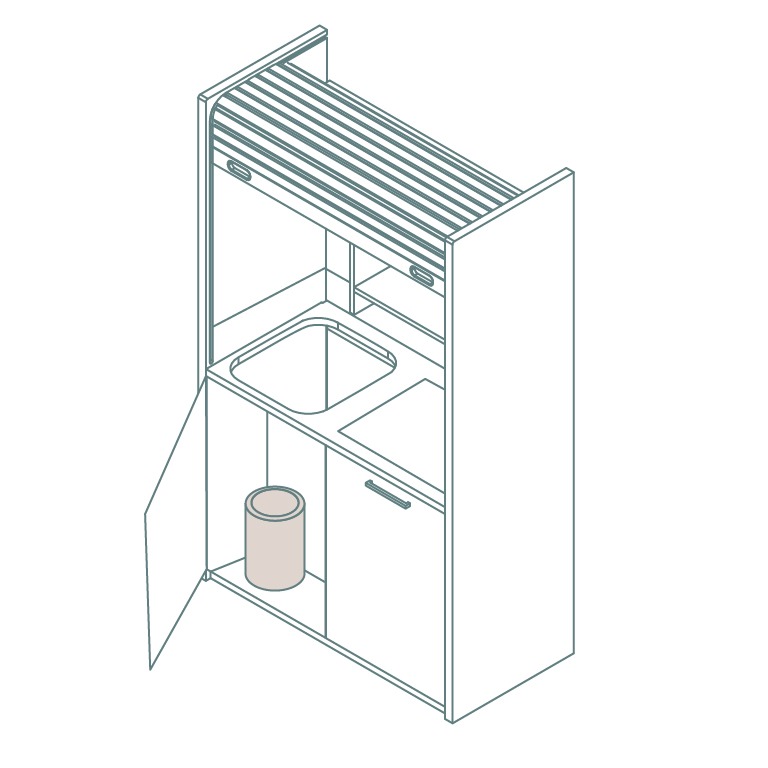

Dust Bin

A PVC bin with lid.
